Current Position: Home >Products>AV Converters> HDMI~VGA

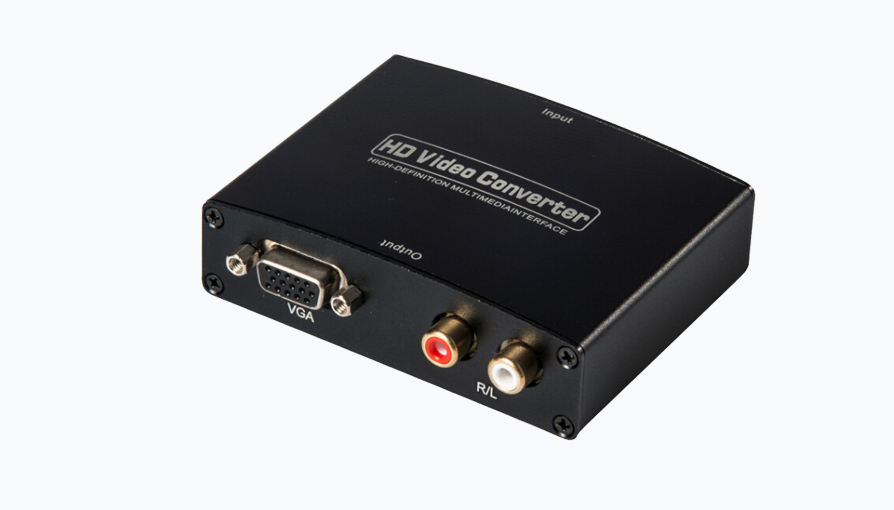

Model:CNTR-03021 Input:1*HDMI
Output:1*VGA, 1*L/R AUDIO



Main Features:
Video bandwidth-165Gbps Video resolution upto 1920*1080



Data Download Pint This Page

Details
CNTR-03021converts HDMI signal into analog VGA video and audio signal. It allows users to enjoy their high definition image and sound when watching movies or playing games on the traditional VGA monitors or projectors. It offers solutions for digital entertainment center, HDTV retail and show site, HDTV,  STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.




FEATURES

The series of the HDMI Amplifier Switcher have many features that enable them to perform in a superior manner. among those features you will find:

1、 Easy to Use: Install in seconds, no need of setting.

2、 Conversion: It could convert complete HDMI into VGA video and R/L audio output.

3、 Support HDCP 1.2

4、 Support 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input.

5、 Suppor  Analogue Video output up to UXGA and 1080p with 10-bit DAC

6、 Led indicates signal and power mode.

7、 Power supply (please refer to technical parameter).


SPECIFICATIONS

Signal Inputs/Output

Input Video Signal

0.5-1.0 volts p-p

Input DDC Signal

5 volts p-p (TTL)

Input connection

HDMI A female(19pin)

Output connection

VGA, R/L Audio

HDMI video input format

480i/576i/480p/576p/720p/1080i/1080P

VGA  video output format

480i/576i/480p/576p/720p/1080i/1080P

Audio output format

2 channel LPCM

Operating Frequency

Vertical Frequency Range

50/60Hz

Input video Amplifier Bandwidth

1.65Gbps/165MHz

Mechanical

Size(LxWxH)

88x68x25.5mm

Weight(Net)

0.68Kg

Warranty

Limited Warranty

1 Year Parts and Labor

Environmentalc

Operating Temperature

0 to +70

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10 to +80

Storage Humidity

5% to 95 % RH (no condensation)

Power Requirement

External Power Supply

DC 5V 1A

Power consumption(Max)

5W

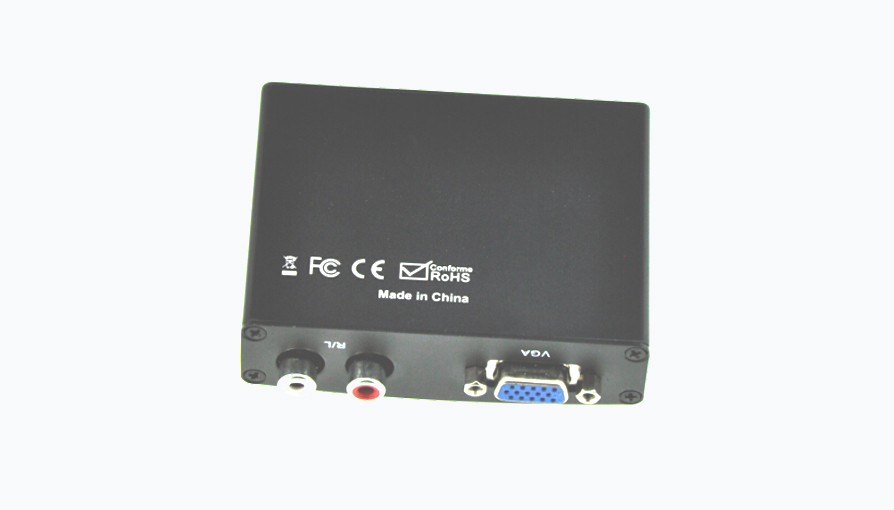

Regulatory Approvals

Converter Unit

CE,FCC,ROHS

Power Supply

CE,FCC,PSE,TK,UL

Accessories Adapter

AC Power Adapter

US standard, UK standard and so on

User Manual

English Version
