Current Position: Home >Products>AV Converters> HDMI~AV

Model:CNTR-01041 Input:1*HDMI
Output:1*Video,1*S-Video, 1*R/L Audio



Main Features:
Auto scaler NTSC/PAL compitable Support the HDCP protocol, support for HDMI 1.3



Data Download Pint This Page

Details

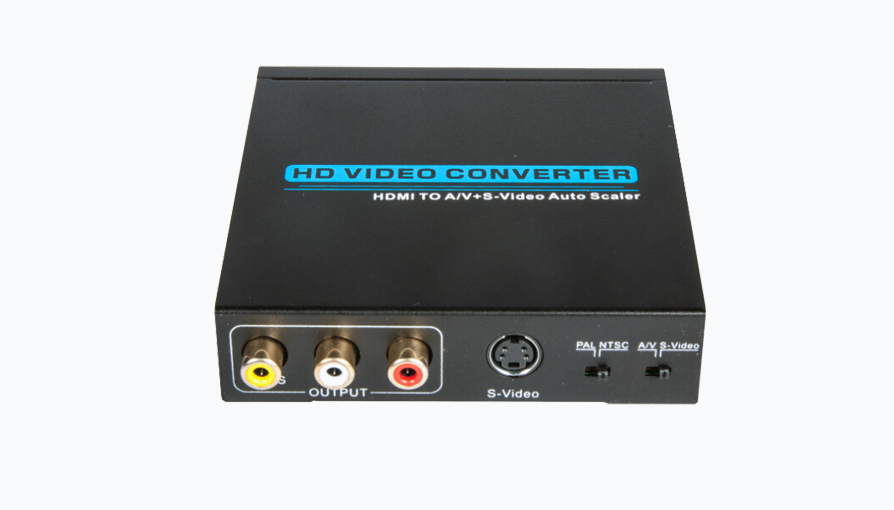

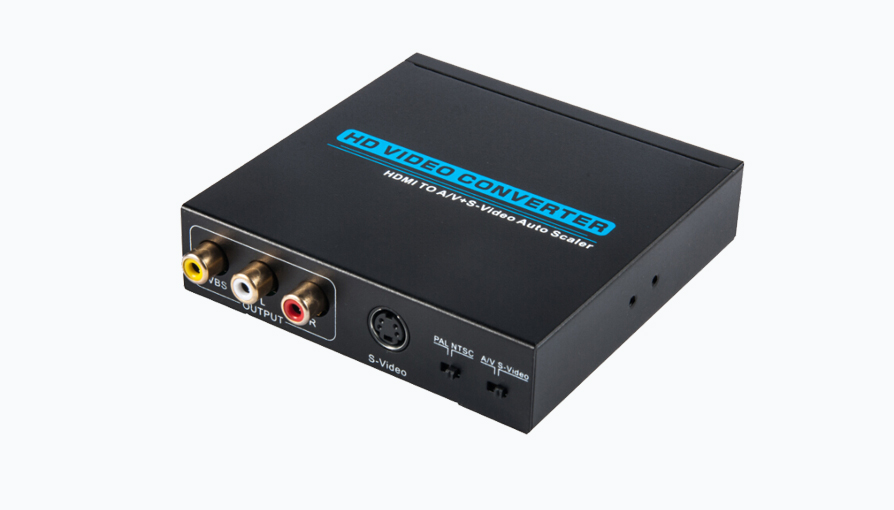

CNTR-01041 converts HDMI video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, and s-video signals. while support DVI system sideline signals. Help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i,)or s-video signal. So that can play on TV, VHS VCR, DVD recorders, etc. Support NTSC and PAL two TV format.


FEATURES:

1. HDMI 1.3 compliant

2. Plug and play

3. Video and S-Video output selectable

SPECIFICATION:

1. Hardware conversion, plug and play without any software driver

2. Compatible HDMI1.3

3. Support NTSC and PAL two standard TV formats

4. One HDMI input, one AV output, one stereo output

   Inputs: HDMI x 1

   Outputs: CVBS x 1; L / R x 1 S-video x 1

5. HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz

6. compatible with DVI mode 800x600,1024x768,1280x720,1280x10241920x1080/@60hz

7. Support the HDCP protocol, support for HDMI 1.3

8. CVBS output: 480I, 576I

9. Audio output: L/R channels

10.S-video OUTPUT: bypass

11.Dimensions100mm(W)x115mm(D)x 25mm(H)


PACKAGING ACCESSORIES:

When first unpacking your extender please check to see if the following items are included:

1.HDMI TO CVBS/S-Video CONVERTER---------------1 Pcs

2.User manual------------------------------------------------1 Pcs

3.Power supply-----------------------------------------------1 Pcs
