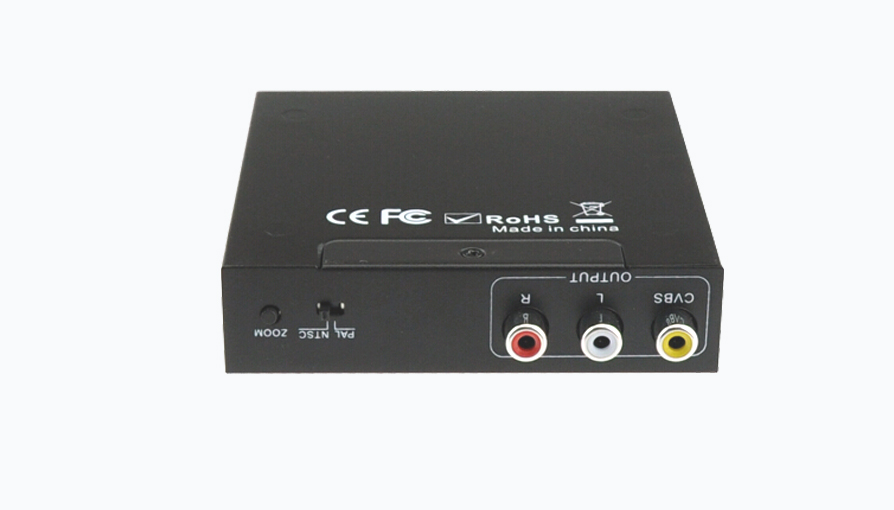

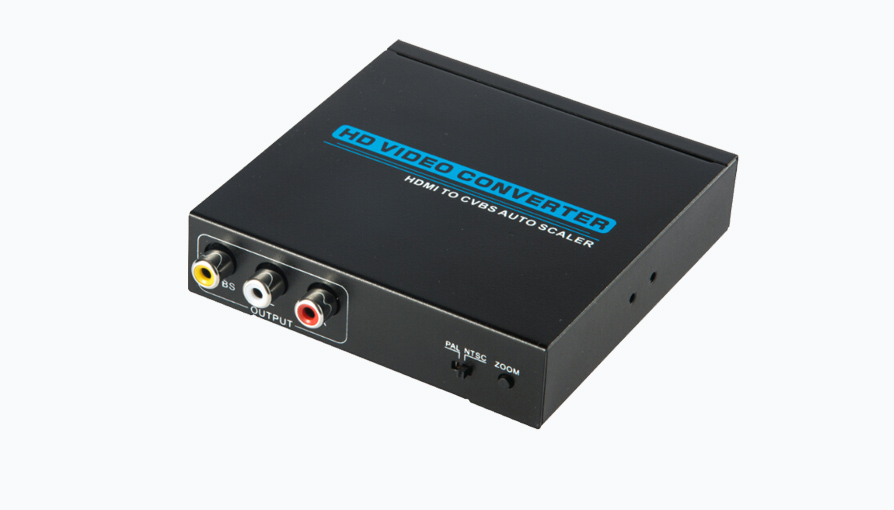

HDMI to CVBS signal converter which will convert HDM video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, while support DVI system sideline signals. Help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i,).So that can play on TV, VHS VCR, DVD recorders, etc. Support NTSC and PAL two TV format.

FEATURES:

1. Plug and play

2. No need any software/driver

3. Built-in Zoom function

4. Lower power consumption

SPECIFICATION:

1. Hardware conversion, plug and play without any software driver

2. Compatible HDMI1.3

3. Support NTSC and PAL two standard TV formats

4. One HDMI input, one AV output, one stereo output

   Inputs: HDMI x 1

   Outputs: CVBS x 1; L / R x 1

5. HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz

6. compatible with DVI mode 800x600,1024x768,1280x720,1280x1024，1920x1080/@60hz

7. Support the HDCP protocol, support for HDMI 1.3

8. CVBS output: 480I, 576I

9. Audio output: L/R channels

10.HDMI OUTPUT: BYPASS HDMI

11.Dimensions：100mm(W)x115mm(D)x 25mm(H)

PACKAGING ACCESSORIES:

When first unpacking your extender please check to see if the following items are included:

1.HDMI TO CVBS CONVERTER---------------1 Pcs

2.User manual----------------------------------------1 Pcs

3.Power supply---------------------------------------1 Pcs
