Current Position: Home >Products>AV Converters> AHD Converters

Model:CNTR-09032 Input:AHD*1
Output:HDMI*1, VGA*1, CVBS*1



Main Features:
Support all type AHD resolution：720P@25/30/50/60Hz HDMI output resolution : 720p & 1080p Pint This Page

Details

Available to convert AHD CCTV camera signal to HDMI & VGA&CVBS synchronously output.


Features:

Support all type AHD resolution：720P@25/30/50/60Hz

HDMI output resolution : 720p & 1080p

VGA output support 1280x720


Specifications:

Model AHD to HDMI &VGA& AV converter

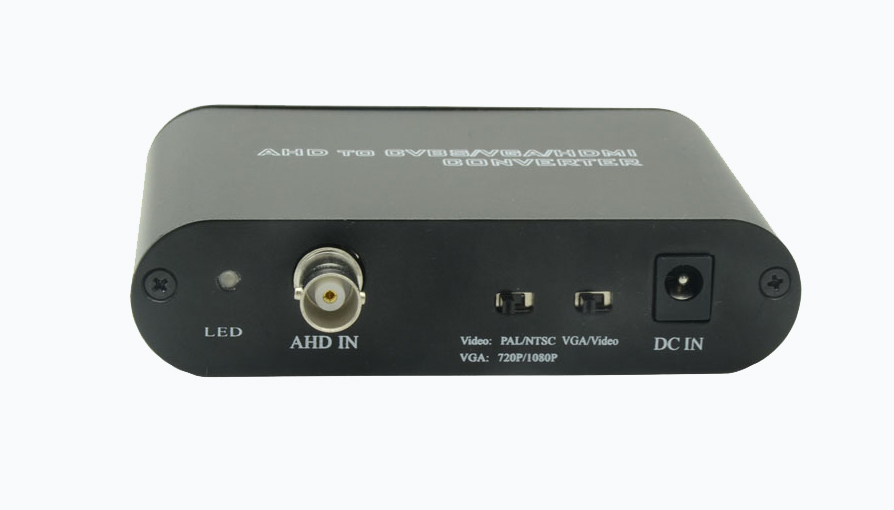

Input Interface 1x BNC AHD

Input Signal Type 		AHD
Support Input Format 720P@25/30/50/60Hz
Video Signal Range 0.8V p-p
Video Impedance 75 ohms
Max. Input Coax Length  500meter for 720p

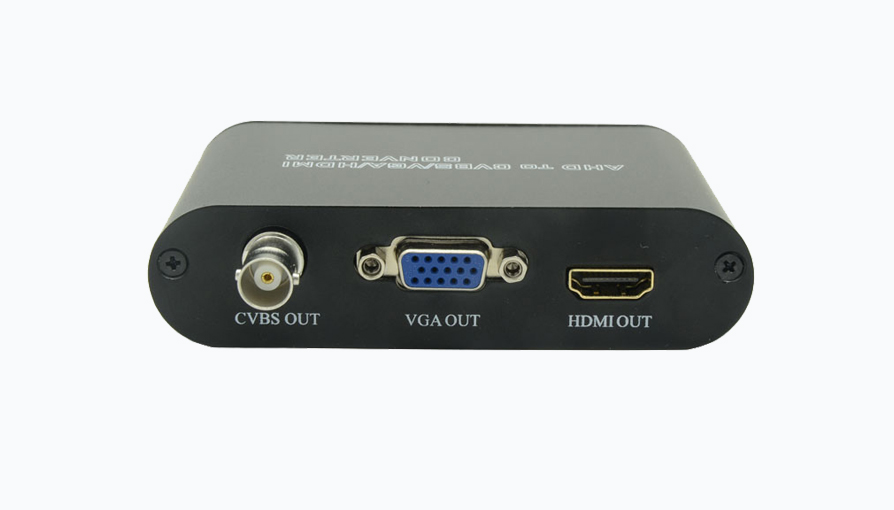

HDMI/DVI Output 1x HDMI
HDMI format 720p&1080p@25/30/50/60Hz;
VGA Output 1x VGA


 VGA format 1280*720@60Hz、
AV (CVBS) output 1 x BNC –F
 AV format PAL and NTSC
Power Supply DC12V,1A
Power Consumption 4-5Watts
Operating Temperature -10°C ~ 60°C / 14°F ~ 140°F
Storage Temperature -30°C ~ 70°C / -22°F ~158°F
Relative Humidity 20~90% RH (Non-condensation)
Dimension 128*84*26mm
