Current Position:
Model:EOHD-00201
Input:HDMI, Optical
Output:Optical, HDMI
Main Features:
Support video resolution up to 1920*1200@60Hz, 3D signal;
Support copy EDID, can match many kind display device;
Compliance with HMDI 1.3 and HDCP 1.2 standard;
Data Download

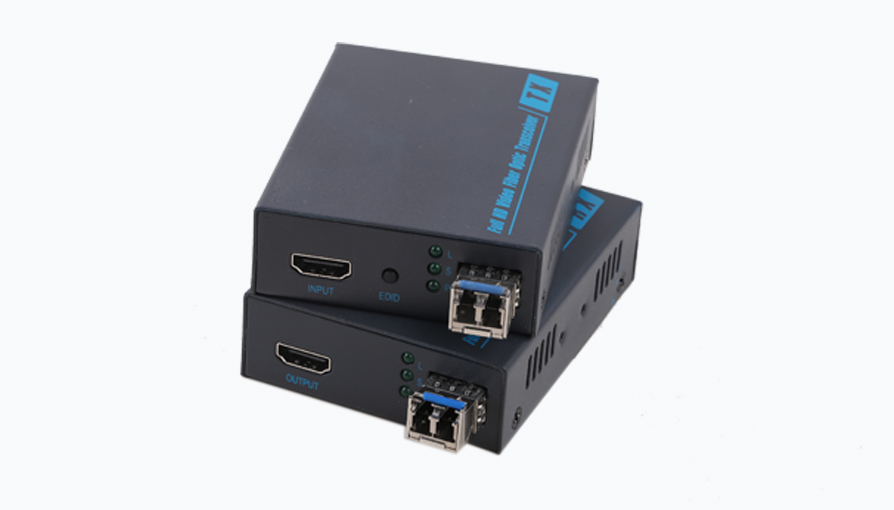

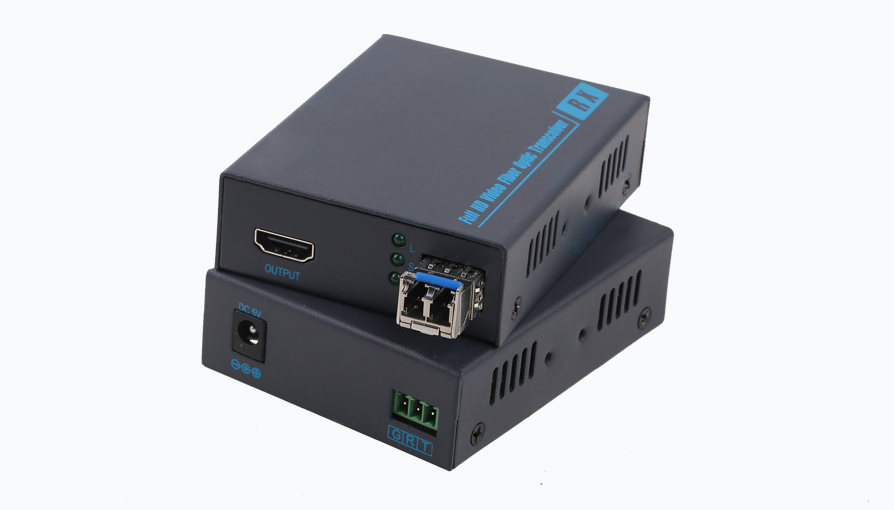

Pint This PageThe EOHD-00201 Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
Transmits HDMI video signals up to 2km-10km over one fiber optic cable; Support video resolution up to 1920*1200@60Hz, 3D signal;
Support copy EDID, can match many kind display device;
Compliance with HMDI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;
Specifications:
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.3; HDCP 1.2 |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution range |
Up to 1920X1200@60Hz |
|
|
Connector |
Female HDMI type A |
|
|
Impedance |
100Ω |
|
|
Optical fiber |
Interface |
SFP model – LC connector |
|
Fiber type |
Single-mode |
|
|
Wavelength |
Single-mode 1310nm |
|
|
Interface bandwidth |
10Gbps |
|
|
Transmission distance |
Single-mode fiber: standard 2km；maximum 10km |
|
|
Other |
Power supply |
The power adapter: DC 5V/2A |
|
Power dissipation |
MAX 5W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
94.5*73*26mm |
|
|
The warranty |
1 year free warranty, life-long maintenance |
|
