Current Position: Home >Products>DVI Extender> DVI Over Cat5e/6

Model:ECDS-06011 Input:DVI-D, Cat5e/6
Output:Cat5E/CAT6, DVI



Main Features:
Support CEC HDCP 1.2 protocal compliant Resolution support upto 1080p



Data Download Pint This Page

Details

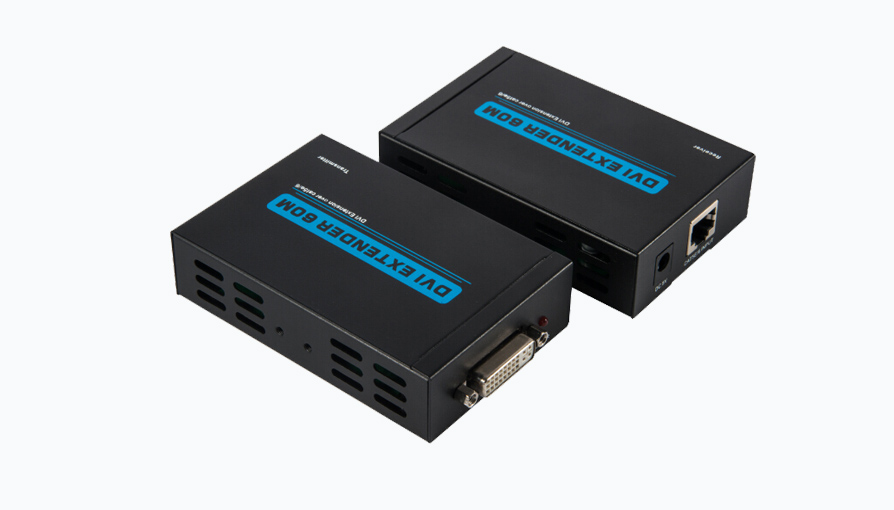

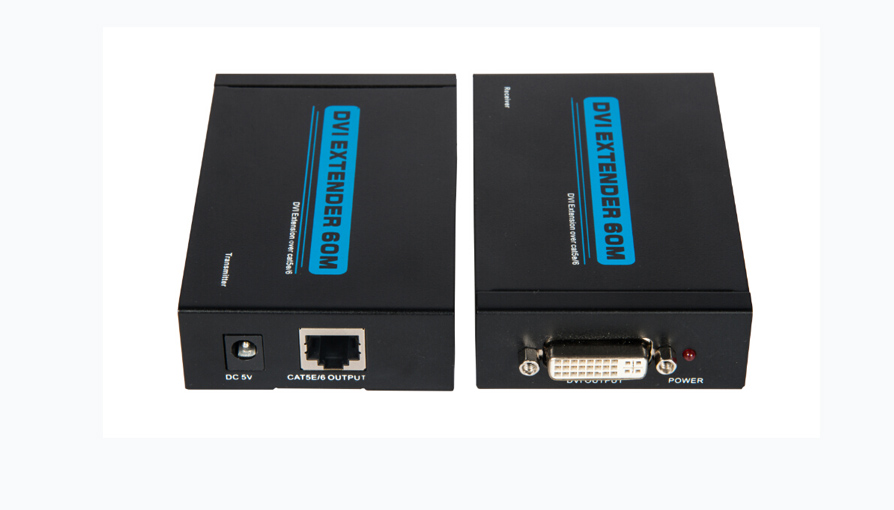

The DVI to RJ45 Extender use single cat-5e or cat-6(recommended) cables up to 60 meters instead of DVI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because DVI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.


FEATURES
1. HDCP 1.2 protocol compliant
2. Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
3. Signal transmission :cat5e or cat-6(recommended) cables up to 60
   meters instead of DVI cables are connected between TX and RX Extender.
4. Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
5. Support CEC
6. Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
7. No loss of quality
8. Installs in minutes
9. Need DC5V/1A power supply

SPECIFICATION
Length of CAT-6 cable between Transmitter and Receiver------------------------------Up to 60 meters(MAX)
HDMI Input------------------------------------------------------24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input----------------------------DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output----------------------------------------------------24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output----------------------------------------------------------LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth----------------------------------------------------------------------------------------------------------165MHz
Max baud rate---------------------------------------------------------------------------------------------------------4.95Gbps
Input Video signal -------------------------------------------------------------------------------------------0.5~1.5Volts p-p
Output DDC signal-----------------------------------------------------------------------------------------5Volts p-p (TT1L)
Input/Output HDMI cable distance-------------------------------------------≤20m AWG26 HDMI standard cable
Max working current----------------------------------------------------------------------------------------------------800mA
Power adapter format------------------------------------Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range-------------------------------------------------------- (-15 to +55℃)
Operating Humidity range-------------------------------------------------------------5 to 90%RH (No Condensation)

PACKAGING ACCESSORIES:
When first unpacking your extender please check to see if the following items are included:
1.Power supply-----------------------2 Pcs
2.User manual------------------------1 Pcs
3.DVI Transmitter--------------------1 Pcs
4.DVI Receiver-----------------------1 Pcs
