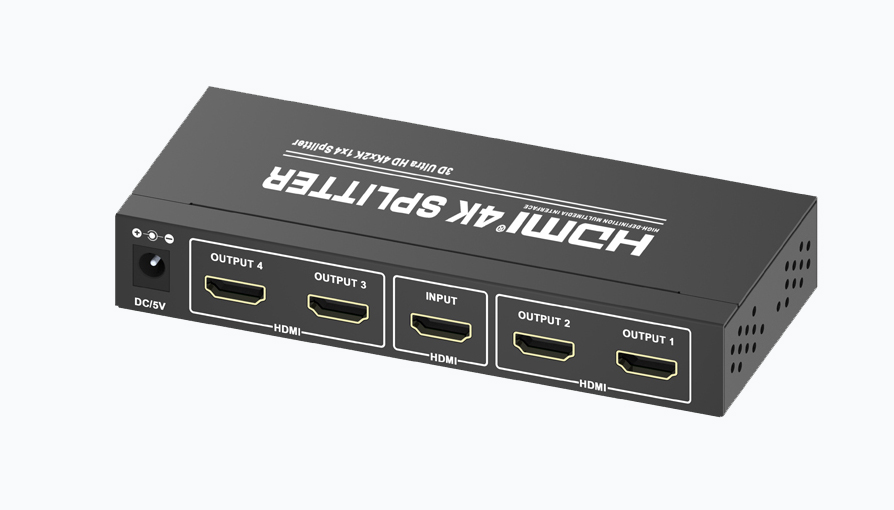

Model:SPLH-01042 Input:1*HDMI
Output:4*HDMI



Main Features:
Support 4K*2K, 3D HDMI 1.4 compliant



Data Download Pint This Page

Details

This 1x4 HDMI splitter is to distribute one HDMI sources to four sources, which enable one HDMI sources synchronously displaying/playing on four HDMI input devices.


Features:
1. Fully HDMI 1.4 specification compliant. It is applicable to source device and high definition display device ,such as DVD and  HDTV which have HDMI Ports or digital ports and are compliant with HDCP protocol.
2. Support high resolutions up to including 480i/p,576i/p,720i/p,1080i/p,4096*2160(4K*2K)
3. Support 36/48 dark, extended color space support, including:SYCC601、Adobe RGB、AdobeYCC601
4. Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.
5. Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD.
6. Increase True HD and DTS-HD audio support, etc.
7. Extend the transmission distance and improve transmission signal.
8. Compatible with DVI by using HDMI to DVI  adapter.
9. Plug- and -play.
10. Metal casing design and overall shielding without signal interference.
11. Led indicates signal and power mode.
12. Power supply (please refer to technical parameter).
13. Support 3D

Technical parameters
HDMI Source Input Port-----------------------------------------------------------------1
Display Device Output Port--------------------------------------------------------------4
Source Port Connector--------------------------------------------------------------------19 PIN HDMI.
Display Device Port Connector---------------------------------------------------------19 PIN HDMI.
HDCP Compliant-------------------------------------------------------------------------YES
Single Link Range------------------------------------------------------------------------4096*2160
Input Video Signal------------------------------------------------------------------------0.5-1.0 Volts P-P
Input DDC Signal------------------------------------------------------------------------5 Volts P-P(TTL)
Deep Color--------------------------------------------------------------------------------48 Bit
HDMI Version----------------------------------------------------------------------------HDMI1.4
Bandwidth---------------------------------------------------------------------------------Up to 340Mhz
Signal Speed------------------------------------------------------------------------------Up to 10.2Gbps
The length of input cable----------------------------------------------------------------PS3≤15M;BLUE DVD≤15M
The length of output cable--------------------------------------------------------------≤25M
The cable standard-----------------------------------------------------------------------26AWG HDMI1.4
Vertical Frequency Range--------------------------------------------------------------60Hz
Power Consumption(max.)------------------------------------------------------------- 2.5Watts
Operation Temperature-----------------------------------------------------------------0℃-70℃
Working Voltage-------------------------------------------------------------------------DC 5V
Power Adaptor---------------------------------------------------------------------------5V 1A
Net Weight-------------------------------------------------------------------------------0.26kg
Dimension: L*W*H(mm)-------------------------------------------------------------- 140.5*63.7*20
