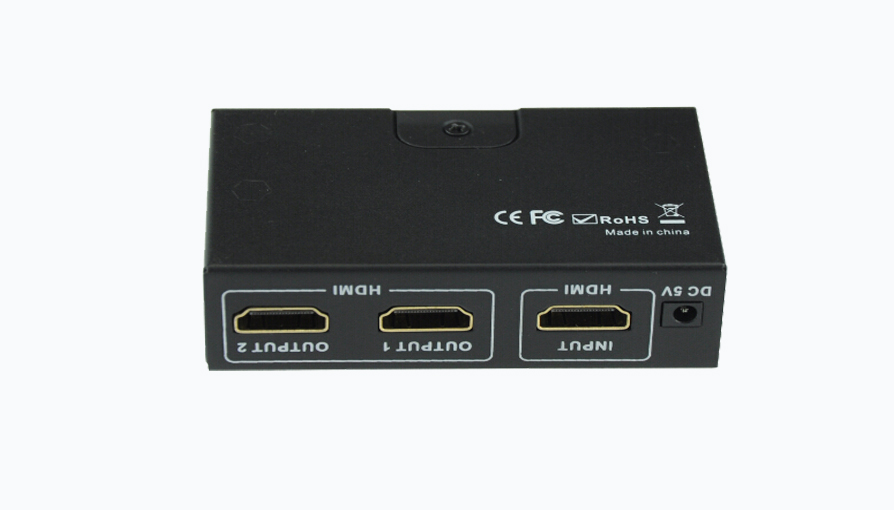

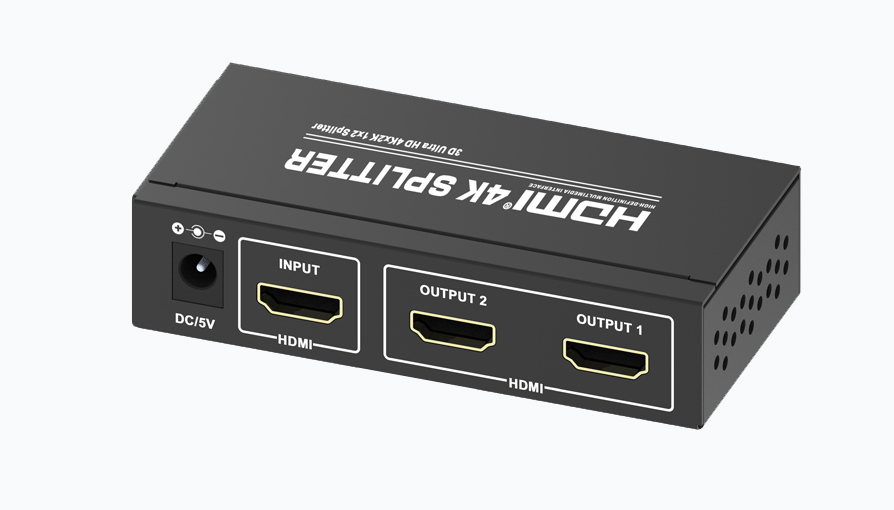

This device is to distribute one HDMI incoming source to two HDMI sources, which makes one sources to be played on two devices.

Features:

1. Fully HDMI 1.4 specification compliant. It is applicable to source device and high definition display device ,such as DVD and  HDTV which have HDMI Ports or digital ports and are compliant with HDCP protocol.

2. Support high resolutions up to including 480i/p,576i/p,720i/p,1080i/p,4096*2160(4K*2K)

3. Support 36/48 dark, extended color space support, including:SYCC601、Adobe RGB、AdobeYCC601

4. Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.

5. Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD.

6. Increase TrueHD and DTS-HD audio support, etc.

7. Extend the transmission distance and improve transmission signal.

8. Compatible with DVI by using HDMI to DVI  adapter.

9. Plug- and -play.

10. Metal casing design and overall shielding without signal interference.

11. Led indicates signal and power mode.

12. Power supply (please refer to technical parameter).

13. Support 3D

Technical parameters

HDMI Source Input Port-----------------------------------------------------------------1

Display Device Output Port--------------------------------------------------------------2

Source Port Connector--------------------------------------------------------------------19 PIN HDMI.

Display Device Port Connector---------------------------------------------------------19 PIN HDMI.

HDCP Compliant-------------------------------------------------------------------------YES

Single Link Range------------------------------------------------------------------------4096*2160

Input Video Signal------------------------------------------------------------------------0.5-1.0 Volts P-P

Input DDC Signal------------------------------------------------------------------------5 Volts P-P(TTL)

Deep Color--------------------------------------------------------------------------------48 Bit

HDMI Version----------------------------------------------------------------------------HDMI1.4

Bandwidth---------------------------------------------------------------------------------Up to 340Mhz

Signal Speed------------------------------------------------------------------------------Up to 10.2Gbps

The length of input cable----------------------------------------------------------------PS3≤15M；BLUE DVD≤15M

The length of output cable--------------------------------------------------------------≤25M

The cable standard-----------------------------------------------------------------------26AWG HDMI1.4

Vertical Frequency Range--------------------------------------------------------------60Hz

Power Consumption(max.)------------------------------------------------------------- 2.5Watts

Operation Temperature-----------------------------------------------------------------0℃-70℃

Working Voltage-------------------------------------------------------------------------DC 5V

Power Adaptor---------------------------------------------------------------------------5V 1A

Net Weight-------------------------------------------------------------------------------0.12kg

Dimension: L*W*H(mm)------------------------------------------------------------- 84*48*20
