Model:CNTR-06011 Input:1*HDMI, 1*SCART
Output:1*HDMI, 1*COAX. 1*3.5MM Audio Jack



Main Features:
Upscale or downscale HDMI input for 1080P/720P Upscale scart to 720p/1080p



Data Download Pint This Page

Details

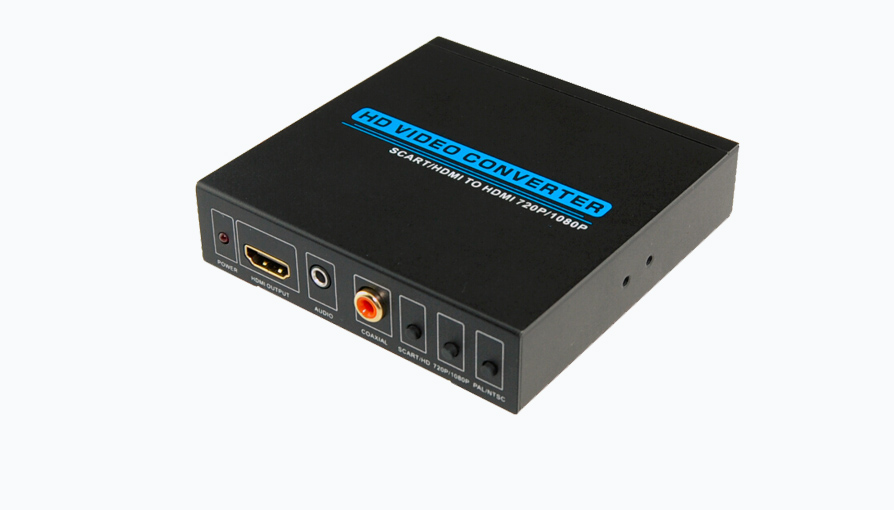

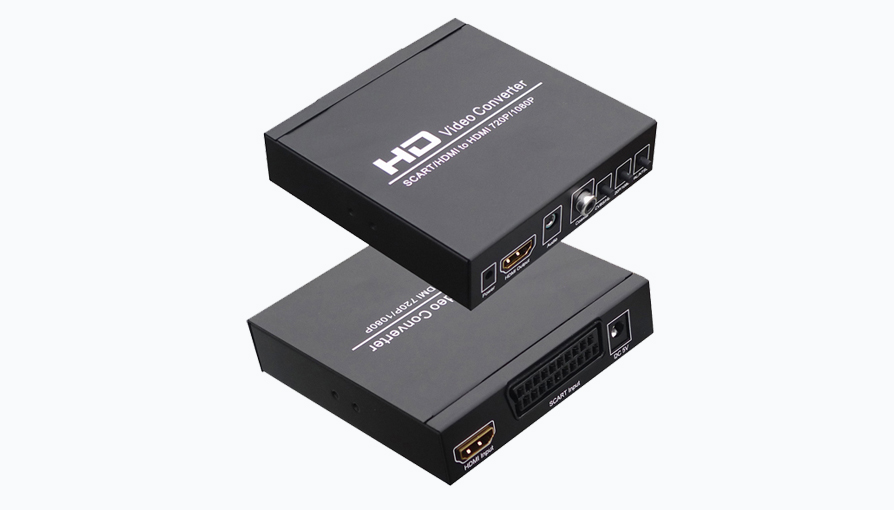

SCART +HDMI to HDMI converter can convert 480I(NTSC)/576I(PAL) format signal to 720P/1080P HDMI signal output, also it can connect with the high definition HDMI input interface, Easily connect with the DVD, set-top box, HD player, Game Console (PS2,PS3,PSP,WII,XBOX360 etc).


FUNCTION:

1).HDMI output interface: connect with high definition TV or high definition projector HDMI output format:720P@50/60Hz, 1080P@50/60HZ Audio output format: Digital coaxial audio, analog stereo audio

2). SCART input interface: DVD, set top box, other players.

SCART input format: PAL/NTSC_M/NTSC4.43/SECAM/PLA-M/PAL-N

3). HDMI input format:

   480I/576I/480P/576P/720P@50_60Hz/1080I@50_60Hz/1080P@50_60Hz

Compatible with several DVI format: 800X6001024X768,1280X1024     1360X768, 1680X10501920X1080 etc.
4). 3.5mm audio interface: Connect with analog audio amplifier or headphones    input interface

5). Digital coaxial output: Connect with digital audio amplifier.


Features:

1) .Scales SCART Signal (RGB or Composite Video) to HDMI 720p or 1080P;

2).HDMI output: 720P, 1080P;

3).SCART audio is integrated into HDMI out as well as pass-through to earphone or sound box output;

4).Automatically detect RGB(50/60Hz), Composite Video(NTSC/PAL);

5).Auto-store setting of output resolution.
