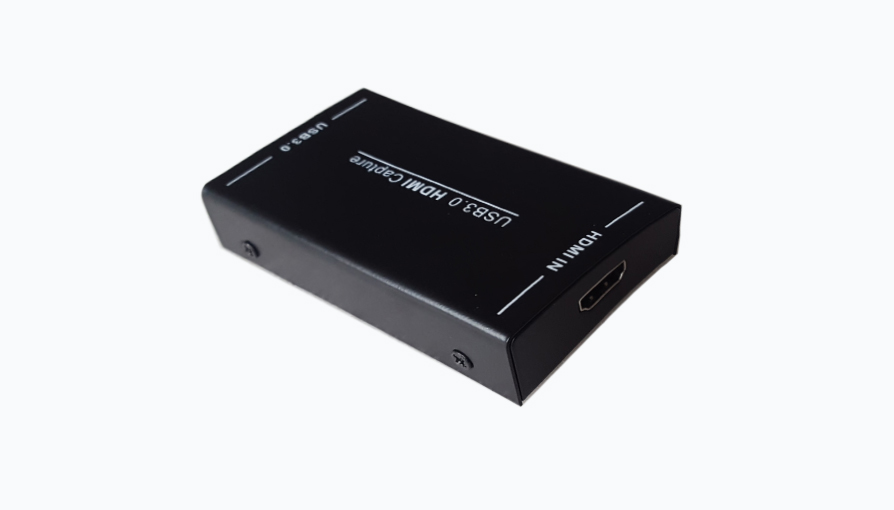

Model:ECAP-3001 Input:HDMI
Output:USB 3.0 TYPE A



Main Features:
*QuickTime Broadcaster(OS X/QuickTime Player(OS X) *USB3.0, *300-350MB/s throughput (USB2.0, *40MB/s throughput) Pint This Page

Details

Product Features:
1. It can capture one single channel HD HDMI video signals.
2. The input and output video signal can reach 1080p/60 Hz.
3. It is compatible with UVC video capture and YUV 422 video output.
4. The UAC is compatible with HDMI audio capture and 48 KHz PCM audio output.
5. It doesn’t need to install a driver, and it is truly PnP.
6. It is compatible with Windows, Linux, OS X operating systems.



Advanced Features:
1. USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0 40MB/s.
2. The process of video and audio is done by the dongle and will not occupy the CPU.
3. It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
4. It can automatically detect the input audio formats and swift it to 48KHz PCM audio.
5. It supports the image adjustment features, like brightness, contrast, hue and saturation.

6. Multiple dongles can be used on one PC


Parameter:

HDMI Input Formats
It meets the HDMI 1.4a standard, and supports 1080p/60Hz 8-bit, (RGB, YUV)

Input Formats
Resolutions: 640x480/720x480/720x576/
768x576/800x600/1024x768/1280x720/1280x800/
1280x960/1280x1024/1368x768/1440x900/
1600x1200/1680x1050/1920x1080/1920x1200/
640x360/856x480/960x540/1024x576/
Frame Rate: 25/29.97/30/50/59.94/60 fps

Output Formats
Resolutions: 640x480/720x480/720x576/
768x576/800x600/1024x768/1280x720/1280x800/
1280x960/1280x1024/1368x768/1440x900/
1600x1200/1680x1050/1920x1080/1920x1200/
640x360/856x480/960x540/1024x576/
Frame Rate: 25/29.97/30/50/59.94/60 fps

Video Sampling Rate
HDMI: 165MHz

Audio and Video Capture
It meets the standards of UVC (USB video class) and UAC (USB audio class)

Output Color Space
YUY2, RGB24

The Support of OS
(x86 and x64 versions):
Windows 7
Windows 8
Windows 10
Windows Server 2008 R2
Linux (Kernel version 2.6.38 and above)
OS X (10.8 and above)
Android

Software Compatibility
Adobe Flash Media Live Encoder (Windows, OS X)
Real Producer Plus (Windows)
QuickTime Broadcaster (OS X)
QuickTime Player (OS X)
Windows Media Encoder (Windows)
Daum Potplayer (Windows, OS X)
XSplit Broadcaster (Windows, OS X)
VLC (Windows, OS X, Linux)
Wirecast (Windows, OS X) etc.
OBS etc.

General
 Power Consumption
 ≤2.5W
 Working Temperature
 -10℃ ~ 50℃
 Storage Temperature
 -20℃ ~ 60℃
