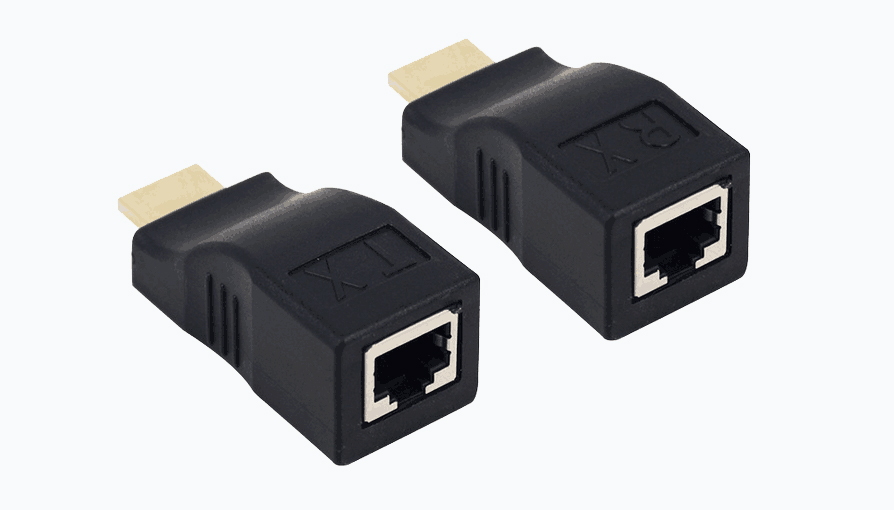

Model:ECHS-03011 Input:HDMI*1, RJ45*1
Output:HDMI*1, RJ45*1



Main Features:
No need power supply 30M for 1080P 10 to 15M for 4K*2K@30Hz Pint This Page

Details

This kind of HDMI Extender by CAT-5e/6 uses single piece CAT-5e/6 cable to extend the HDTV display up to 30 meters for 1080p.It not only breaks the limitation of the HDMI cable transmission Length, but also CAT-5e/6 has more flexibility and convenience in cable construction.

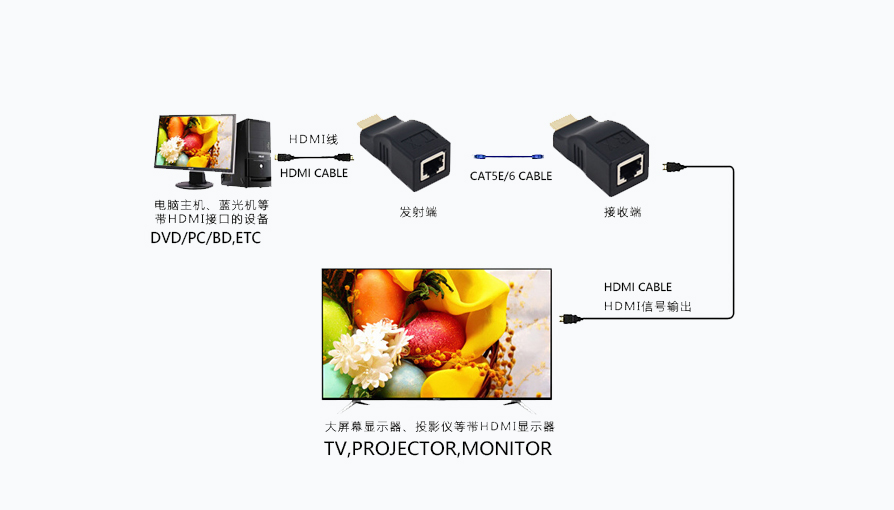

Connection and Operation:
1. Plug the fixed HDMI connector of the sender into the
    HDMI input source such as:HD-DVD,PS3,STB etc.
2. Connect single CAT-5e/6 cable to both the output of the
     transmitter and input of the receiver.
3. Plug the fixed HDMI connector of the receiver into the
     HDMI display (such as: HD-LCD,HD-DLP)
Features:
 This HDMI extender has many features that enable it to perform in a superior manner. Among those features you will find.
1. One pair as a full functional module, no need of setting.
2. CAT-5e/6 cable can substitute HDMI cable to achieve
    long distance transmission.
3. Follow the standard of IEEE-568B.
4. Transmission distance can be up to 30 meters for 1080p 4K*2K@30Hz support upto 10~15M.
     using CAT-6 Cable.
5. Compact size.
6. Signaling rater up to 2.5Gbps in support of 1080p display.
7. HDCP compliant.
8. No need for extra power supply.
