Model:ECHS-05051 Input:HDMI*1,RJ45*1,IR IN
Output:RJ45*1, HDMI*2, IR OUT



Main Features:
Dual IR and EDID Loop out for local display 1080P upto 60M Pint This Page

Details

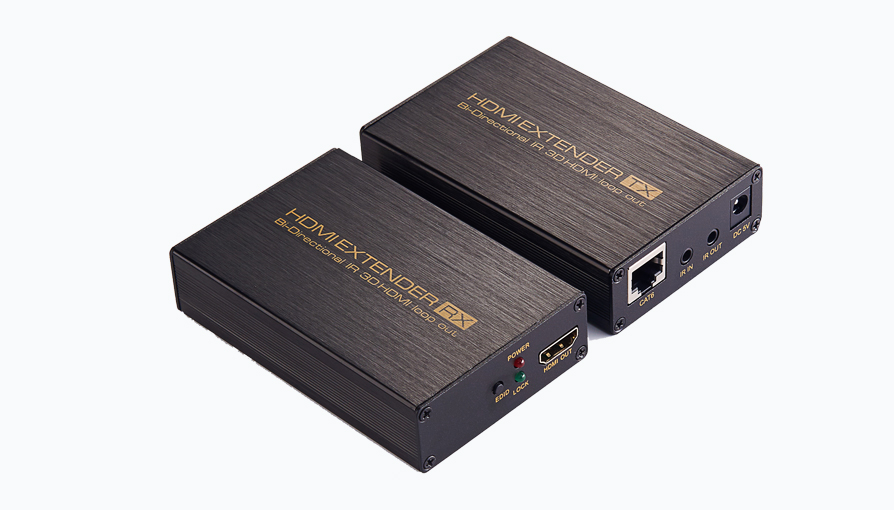

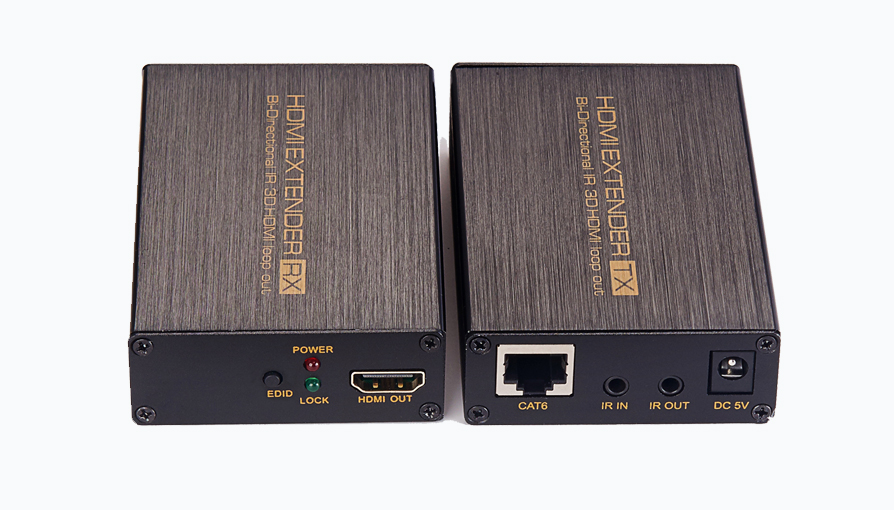

The extender includes two units: transmitting unit  and receiving unit.  The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable.  The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals.  The extender offers the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for any application.


FEATURES
Ø Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable
Ø Distribute a HDMI  signal to local HDMI output port
Ø Bi-directional IR system allowing for control of source or display (IR accessories included)
Ø Smart  EDID management
Ø Transmission Range: Extends 1080p resolution up to 200ft/60m over a single Cat5e or Cat6 cable
Ø Works with HDMI and HDCP compliant devices
Ø Supports up to 1080p High Definition resolution
Ø Compact design for an easy and flexible installation


SPECIFICATIONS
Video Bandwidth:  Single-link 165Mhz [ 4.95Gbps]
Video Support:  480i/480p/720p/1080i/1080p @60Hz
Audio Support:  Surround Sound (up to 7.1 ch) or stereo digital audio
Transmission Range:  HD [1080p 24-bit color] – up to 60m [200ft]
Input TMDS Signal:  3.3 volts
Input DDC Signal:  5.0 volts/P-P
ESD Protection:  Human Body model: +/- 8 kV (air-gap discharge) ; +/- 4 kV (contact discharge)
PCB stack-up:  4 layouts
HDMI connector:  Type A 19 pin female
RJ-45 connector:  WE/SS 8P8C
3.5mm connector:  (TX and RX) IR Receiver/IR Blaster
