Current Position: Home >Products>HDMI Over Fibre Optic> 20 KM HDMI Over Fibre

Model:EOHS-02002 Input:HDMI, IR, Optical
Output:HDMI, IR, Optical

Main Features:
Support IR transmission Compliance with HDMI 1.3 and HDCP 1.2 standard

Data Download Pint This Page

Details

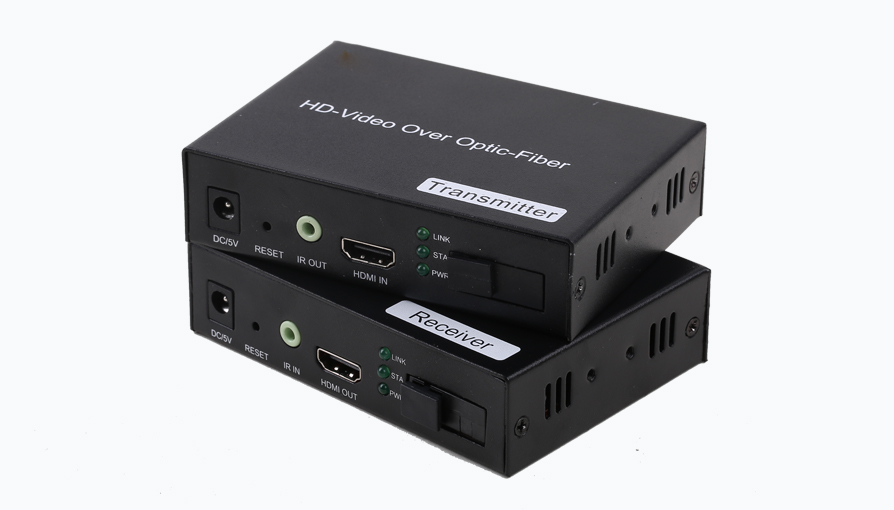

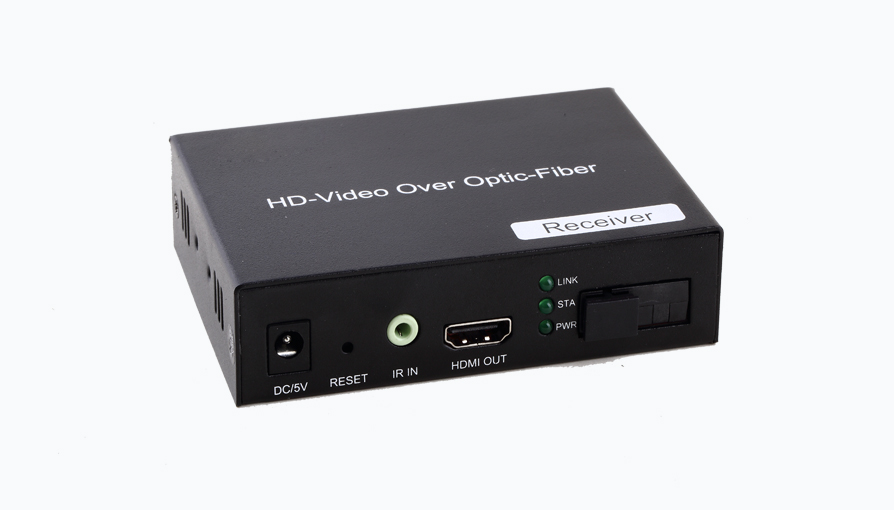

The EOHS-02002 Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P and IR transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

l Transmits HDMI video and audio signals up to 20km over one fiber optic cable;
l Support video resolution up to 1920*1080P@60Hz;
l Support IR transmission;
l Compliance with HDMI 1.3 and HDCP 1.2 standard;
l High compatibility, can auto-match source and display device;
l Built-in automatic adjustment system, make the image smooth, clear and stable;
l Built-in ESD protection system;
l Simple to install, plug and play;

Specification:

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution range	Up to 1920X1080P@60Hz
	Connector	Female HDMI type A
	Impedance	100Ω
Infrared	Interface	3.5mm earphone seat
	Signal type	Digital
	Transmission direction	Unidirectional
	Carrier frequency	38kHz
Optical fiber	Interface	SC/FC connector
	Fiber type	Single Mode
	Wavelength	1310nm, 1510nm
	Interface bandwidth	6.25Gbps
	Transmission distance	Standard: 20km; maximum: 80km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 5W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	1138028mm
	The warranty	1 year free warranty
