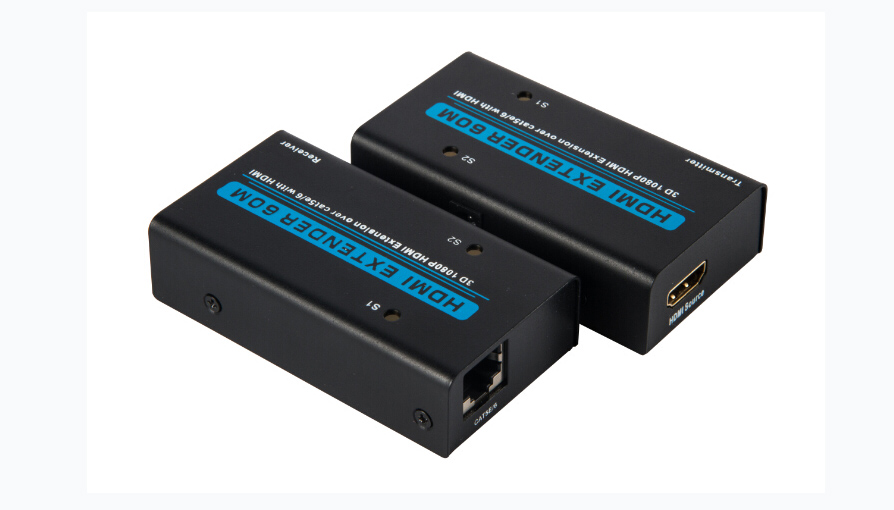

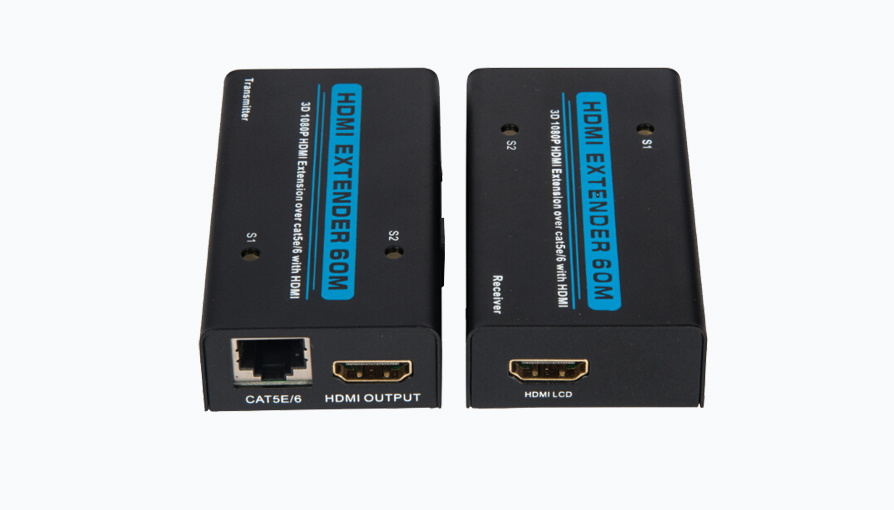

This is a simple version for user to extend HDMI signals over 60M, no EDID setting and IR control.

FEATURES
1. HDCP 1.2 protocol compliant
2. Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
3. Signal transmission :cat5e or cat-6(recommended) cables up to 60
   meters instead of HDMI cables are connected between TX and RX Extender.
4. Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
5. Support CEC
6. Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
7. No loss of quality
8. Installs in minutes
9. Need DC5V/1A power supply

SPECIFICATION
Length of CAT-6 cable between Transmitter and Receiver-----------------------------------------Up to 60 meters
HDMI Input--------------------------------------------------------24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input------------------------------DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output------------------------------------------------------24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output-----------------------------------------------------------LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth----------------------------------------------------------------------------------------------------------165MHz
Max baud rate----------------------------------------------------------------------------------------------------------4.95Gbps
Input Video signal -------------------------------------------------------------------------------------------0.5~1.5Volts p-p
Output DDC signal-----------------------------------------------------------------------------------------5Volts p-p (TT1L)
Input/Output HDMI cable distance-------------------------------------------≤20m AWG26 HDMI standard cable
Max working current----------------------------------------------------------------------------------------------------800mA
Power adapter format-------------------------------------Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range------------------------------------------------------- (-15 to +55℃)
Operating Humidity range------------------------------------------------------------5 to 90%RH (No Condensation)

PACKAGING ACCESSORIES:
When first unpacking your extender please check to see if the following items are included:
1.Power supply-----------------------2 Pcs
2.User manual------------------------1 Pcs
3.HDMI Transmitter------------------1 Pcs
4.HDMI Receiver---------------------1 Pcs
