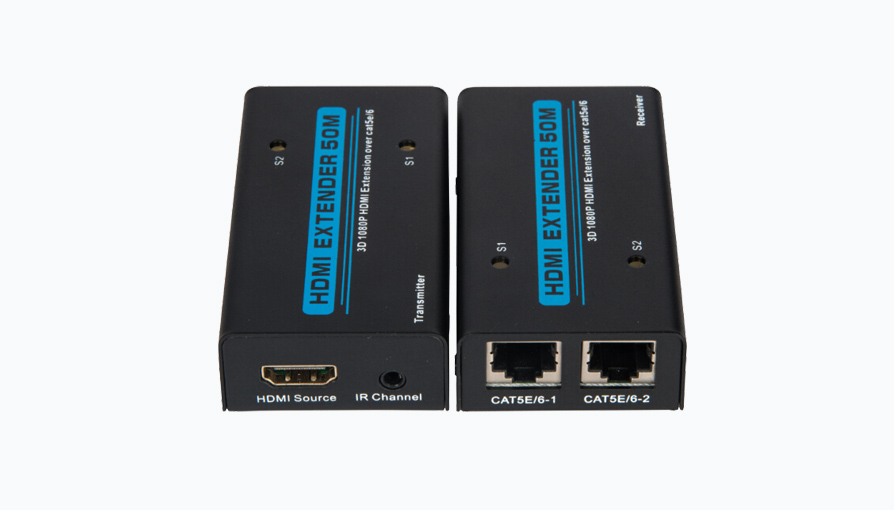

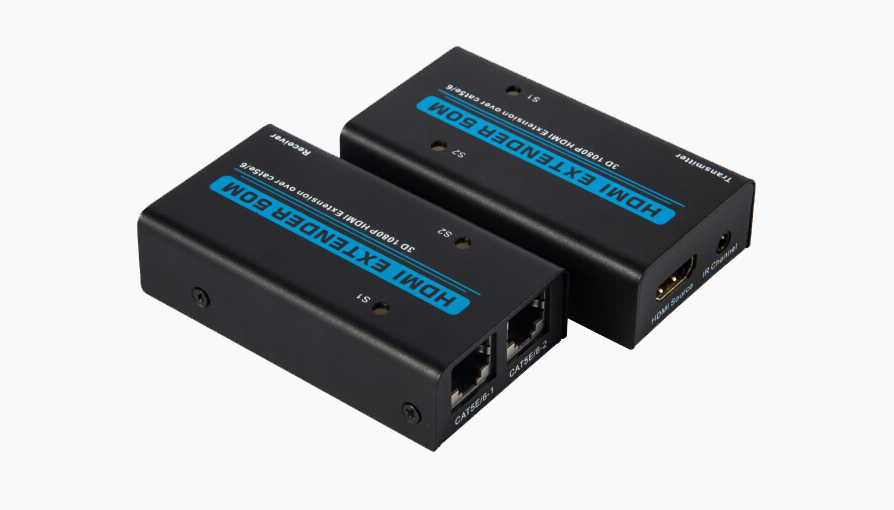

Extends HDMI audio and video signals over dual cat5e or cat6 cable at a great distance upto 164 feet (50M).

Features:

1. HDMI 1.3b, HDCP 1.1 and DVI 1.1 compatible

2. Support resolution upto 1080p (1920*1080)

3. Transmission distance upto 50 meters @ 1080P

4. Audio support: LPCM, Dolby Tru-HD, DTS Master Audio, 7.1CH

5. Super IR control system, wide bands IR frequency from 20KHz to 60KHz.

PACKAGE INCLUDED：

When first unpacking your extender please check to see if the following items are included:

1、 Power supply；

2、 User manual；

3、 HDMI extender TX and RX.

SPECIFICATION:

HDMI version----------------------------------------------HDMI 3D

HDCP version---------------------------------------------HDCP1.2

Support HDMI resolution-------------------------------1080P/1080i/720P/576P/576i/480P/480i

Support video color bit----------------------------------deep color 24bit/36bit

Support audio format------------------------------------LPCM/Dolby-AC3/DST7.1/DSD

Input video signal-----------------------------------------5.0Volts P-P

Output cable distance------------------------------------≤5 Meter

Input cable distance--------------------------------------≤5 Meter

Data transfer speed---------------------------------------6.75Gbps-10.2Gbps

Operating Humidity range--------------------------------5 to 90%RH(No Condensation)

Operating Temperature range--------------------------- -15 to+55℃（5 to 131 ℉）

Power adapter format-------------------------------------Input AC(50Hz-60Hz)100-240V

Power supply------------------------------------------------ DC 5V
