It can change the interlacing signals of s-video or composite video into VGA signals non-interlacing. Let your monitor change into flicker free display. Flicker free display is good display. It also can be connected to VCD/DVD/Webcam/set-top box etc. And made your monitor be like a digital TV.

Features:

1：Supports PAL/NTSC/SECAM system.
2：Output resolution: up to 1920X1200@60Hz.
3：Bright, Contrast, Saturation, Hue adjustable.
4：OSD display.
5：Picture mode selection.
6：Digital comb filter, no more cross color.
7：3D motion adaptive de-interlacing.
8：Standard VGA output works with all standard monitor.

Specification:

1：Input/Output Port

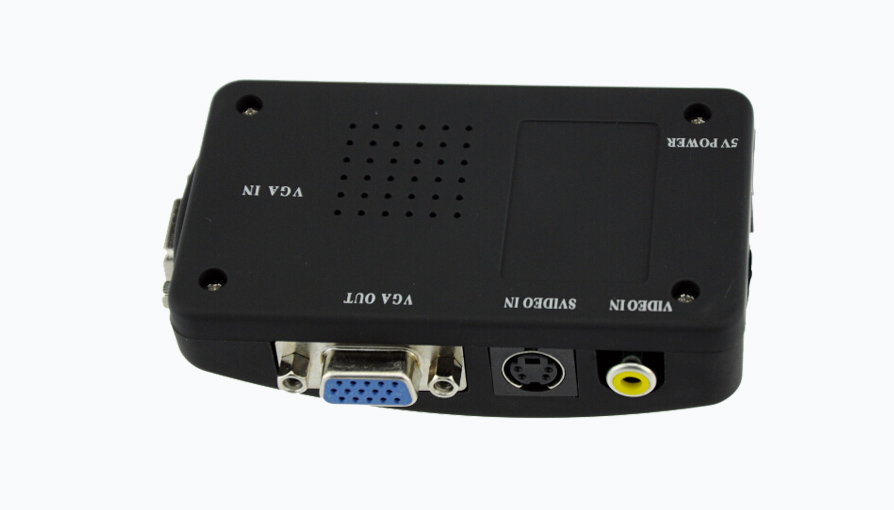

Input: 1xAV, 1xS-Video, 1xVGA

Output：1xVGA

2：VGA Output resolution

800X600@60Hz, 800X600@75Hz, 1024X768@60Hz, 1280X1024@60Hz,

1280X720@60Hz,1360x768@60Hz,1440X900@60Hz, 1600X1200@60Hz,

1680X1050@60Hz, 1920X1080@60Hz, 1920X1200@60Hz

3：Input format

AV/S-Video Input: Auto-Detect  PAL, NTSC, SECAM

VGA Input: BYPASS

4. Industry-level design.(size: 110X56X36mm)

5. Wide range power supply:5V—12V DC adapter
