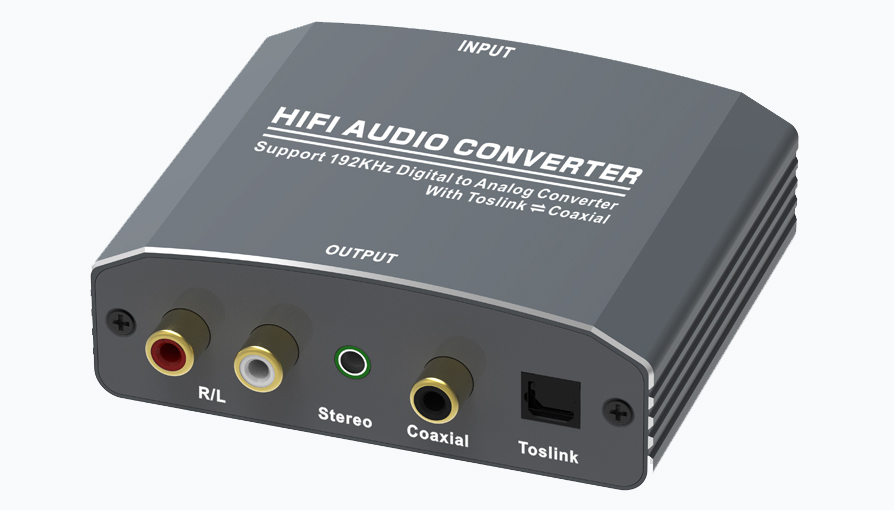

1.0 INTRODUCTION
This Digital to Analog Audio Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio or digital audio and available for connection to an external device such as an amplifier via standard RCA-style jacks and 3.5mm stereo jack,SPDIF and Coaxial,This Converter is small in size and quite easy to install.

2.0 FEATURES
This Converter has many features that enable it to perform in a superior manner. Among those features you will find:
1)Converts Coaxial or Toslink digital audio signals to analog audio.
2)Converts Coaxial to Toslink or Converts Toslink to Coaxial.
3)Supports sampling rate at 32, 44.1, 48 and 192KHz.
4)24-bit SPDIF incoming bit stream on left and right channels.
5)Support Input select.
6)Support volume amplification and adjustment.
7)Provides electromagnetic-noise-free transmission.
8)Easy to install and simple to operate.

3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1)Digital to Analog Audio Converter---------------------1 PCS
2)5V DC Power Supply-------------------------------------1 PCS
3)User’s Manual----------------------------------------------1 PCS

4.0 SPECIFICATIONS
Signal Inputs/Output
Input Audio: Coaxial or Toslink digital audio

Output Audio: Coaxial/Toslink/R/L +3.5mm

audio Connector

Input audio connector: Toslink、1XRCA(Coaxial)
Output audio connector: 2XRCA（R/L）1X3.5mm stereo jack
1XToslink、1XRCA(Coaxial)
Sampling rate 32,44.1, 48,96 and 192KHz
Mechanical Size(LxWxH) 90.4x60.8x22.8mm
Weight (Net) 110g
Warranty : Limited Warranty 1 Year Parts and Labor
Environmental/:
Operating Temperature 0 ℃ to +70℃
Operating Humidity 10% to 85% RH (no condensation)
Storage Temperature -10℃ to +80℃
Storage Humidity 5% to 90% RH (no condensation)
Power Requirement
External Power Supply DC 5V 1A
Power Consumption 0.5 watts (max)
Regulatory Approvals
Converter Unit FCC,CE,UL
Power Supply UL,CE,FCC
Accessories Adapter
AC Power Adapter US standard, UK standard and so on
User Manual English Version
Note: Specifications are subject to change without notice.
